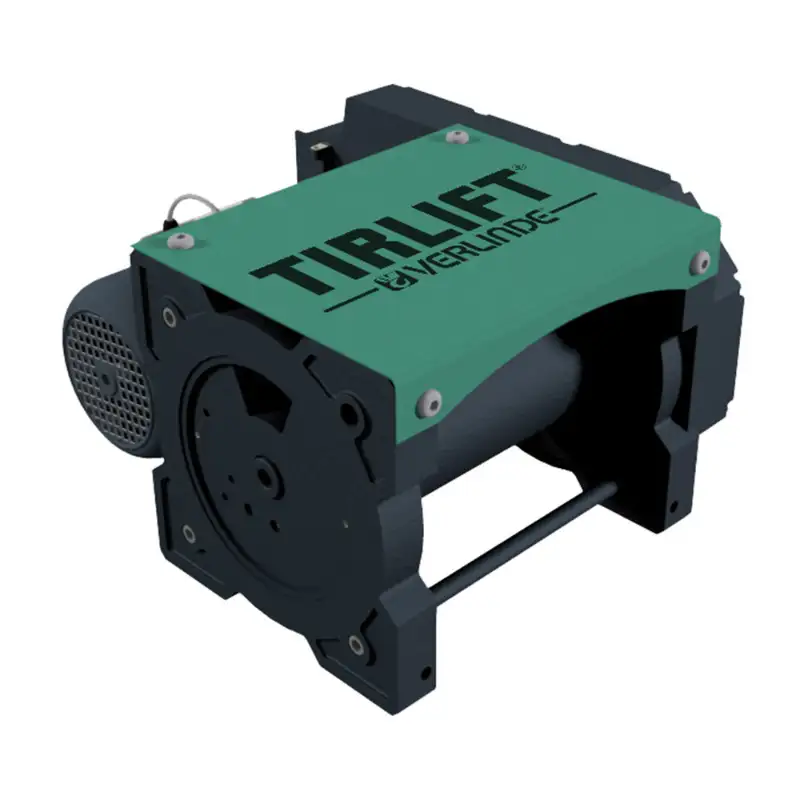

Tirlift 2

Technical characteristics

These winches comply with directive CE 2006/42/CE are designed for pulling and lifting of loads between 125 kg and 1,500 kg (Class FEM 1Am, 2m).

TIRLIFT type TL and TC electric winches offer the following standard features:

• Protection of electrical components (control panel and motor), type IP55.
• Totally enclosed, life lubricated, helicoidal gear treated (type according load range).
• One or two lifting speed or variable speed.
• A start/stop contactor (for type B and C equipment).
• A 48 V Low Voltage transformer (for type B and C equipment).
• A wide line of hoisting motor with insulation class F, IP 55 protection.
• Spring loaded disc brake.
• A modular and evolutional under-frame allowing many directions for wire rope outlets from the drum.

Options available

• Tropicalized motor.
• Thermal protection.
• Others voltage (delay from 3 to 6 weeks).
• Additional length of cable for the buttons box or the remote cubicle per meter.
• Lifting limit switch.
• 4 step gear limit switch (IP66).
• Drum rope pressure roller.
• Manual brake release.
• Left or right grooved drum (1 anchor).
• Left or right grooved drum (2 anchors).
• Left and right grooved drum (2 anchors).
• Left or right grooved drum (1 anchor) for tube higher diameter.
• Left or right grooved drum (2 anchors) for tube higher diameter.
• Left and right grooved drum (2 anchors) for tube higher diameter.
• Add anchor rope.
• Center separation plate.
• Motor cover (available only with A and C type).
• Load limiter (1 speed).
• Radio control = emitter + receiver (Hauling).
• Add emitter (Hauling).
• Radio control = emitter + receiver (Lifting).
• Add emitter (Lifting).
• Tubular protection Frame.
• Counter weight 10 kg for cable Ø 4/5/6.
• Counter weight 20 kg for cable Ø 7/8.
• Counter weight 25 kg for cable Ø 9/10.
• Counter weight 50 kg for cable Ø 11,5/13.
