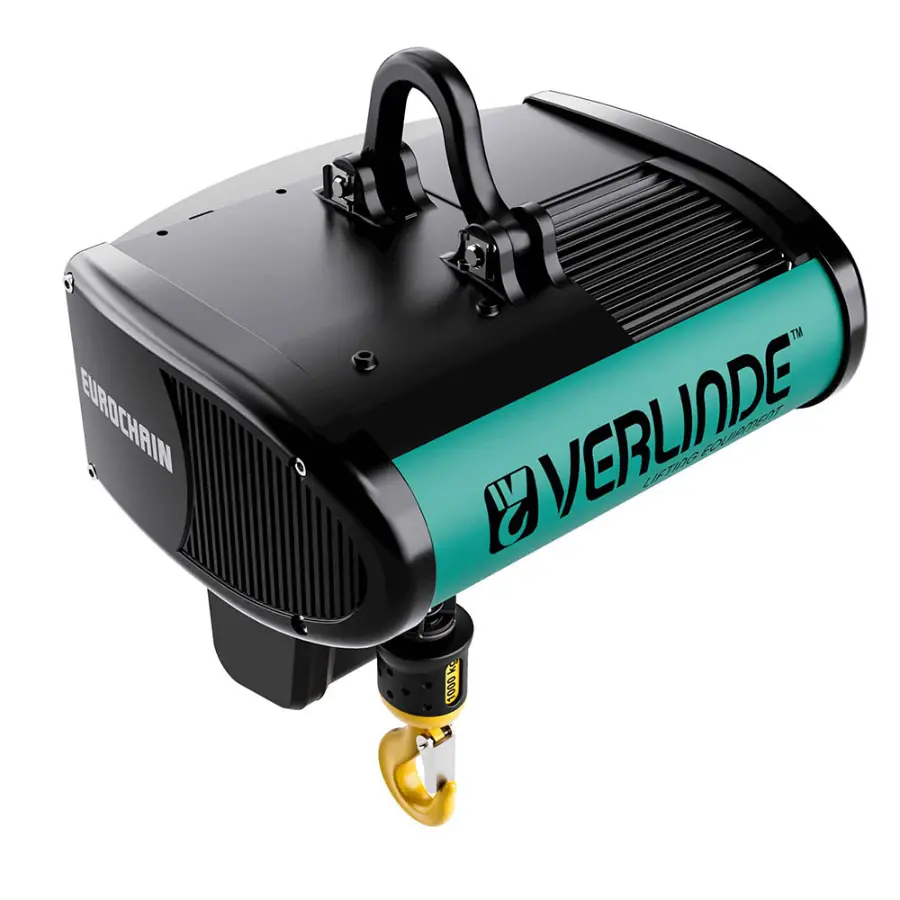

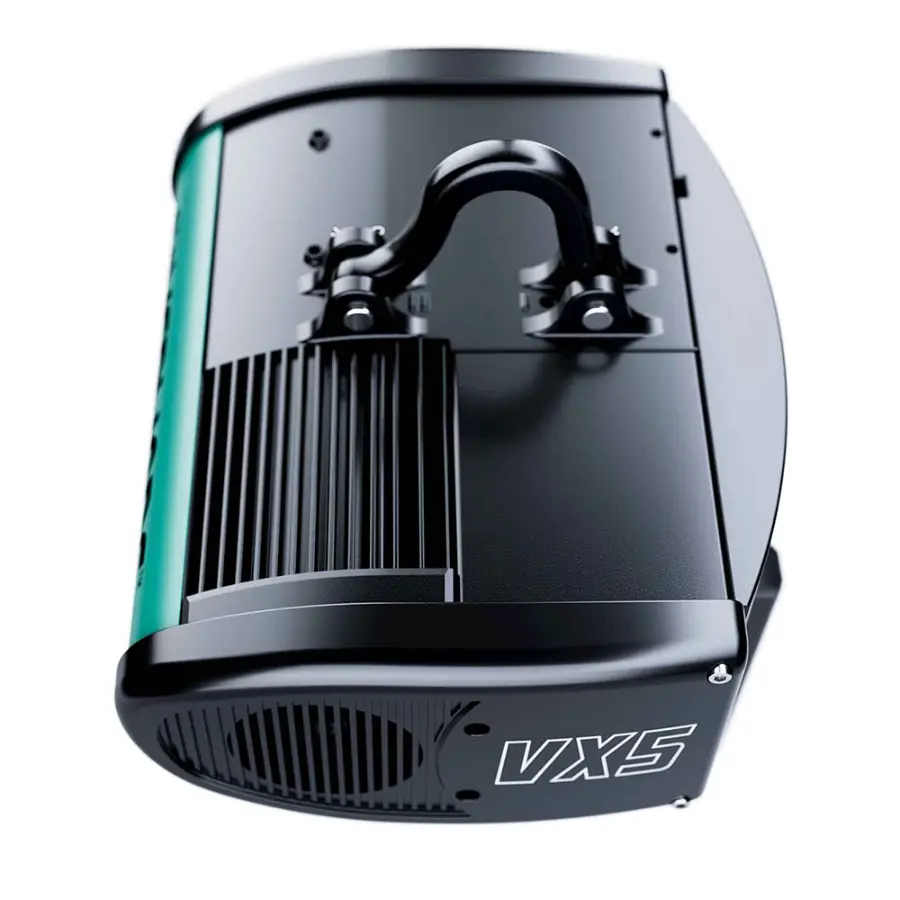

Eurochain VX

Name: Eurochain VX
Brand: Verlinde

Electric chain hoist for loads from 63 to 2500kg

Here comes the new VERLINDE electric chain hoist for load from 63 to 2500 kg. After two years designing the next level of chain hoist technology and production, we are ready to present our new series in the light lifting version.

Commercial Documentation Enquire about this product

Call 01909 772468 for pricing and availability
24/7 breakdown support for every crane we supply

Specification

Product details.

Technical characteristics

Height of lift 3 m.
Bracket suspension for suspended hoist.
2 hoisting speeds.
Safety limit switches for upper & lower position.
IP55 hoisting & travelling motor protection.
Load chain galvanized.
Control cable 2,5 m.
2 buttons pendant for hook suspended hoist or manual trolley.
4 buttons pendant for hoist with electric trolley.
Power supply 400V/3Ph/50Hz or 415V/3Ph 50 Hz or 460V/3Ph /60 Hz.
Low voltage control 48 V.
Torque limiter.
Chain collector.
Emergency stop button mushroom type.
Paint 5 years guaranteed (RAL 7021).
Variable travelling speed (for hoist with electric trolley).
2 years guaranteed.

Options available

Non standard power supply (ex. : 230 3ph).
ACF board for direct control hoist.
Hard wired control (48V).
Stainless steel lifting chain and hook.
Self locking hook.
Time meter.
Radio remote control.
Pendant with 4 or 6 buttons.
Key switch on pendant.
Travel limit switches.
Non standard length on power supply cable.
Non standard power supply plug (4 or 5 poles).
Rain cover.
Brake manual release.
Food contact oil (NSF H1).
Gear limit switches 2 or 4 steps.
