Eurochain VR

Name: Eurochain VR
Brand: Verlinde

Electric chain hoist for loads from 800 to 10000 kg

Completely innovative, top of the range design, its fluid, contemporary and elegant lines confirm the power of this electric chain hoist. This new generation of EUROCHAIN VR hoists is the result of innovative technology; new materials, new operating concepts, can adapt to each specific need.

Commercial Documentation Enquire about this product

Call 01909 772468 for pricing and availability
24/7 breakdown support for every crane we supply

Specification

Product details.

Technical characteristics

New lifting nut concept with intermediate teeth for perfect chain drive
Torque limiter
Disk lifting brake
3m standard lifting height
Dual-speed lifting
Safety electric end of run for up and down position
IP55 lifting and travelling motor
Thermal protection on lifting motor
Tropic-proof protection (lifting and steering - 90 to 95 %)
Galvanised lifting chain
Disconnectable command cable
2-buttons unit on fixed hoist or push steering carriage
4-buttons unit on hoist coupled to electric steering carriage
«Punch» emergency stop button
400V/3Ph/50Hz or 415V/3Ph/50 Hz or 460V/3 Ph/60 Hz power supplyLow voltage 48 V command
Chain bag
70 mm, RAL 7021 epoxy powder paint
Speed variation on travelling - MS Mode (for hoists with an electric trolley)
Complies with the CE machine directive

Options available

Gear limit switch
Second brake on lifting motor
Attachment by eyelet (perpendicular) to replace the upper hook
Automatic closure lifting hook
Travelling limit switch
Short headroom trolley
Trolley for curved track
Dual-speed travelling trolley carriage (20 & 5 m/min)
Slow speed travelling trolley (3 to 10 m/min)
High speed travelling trolley
Additional button on pendant unit
Wall-mounted command
Direct voltage hoist control to replace the low voltage
Manual brake release
Rain protection
Reinforced protection
Total protection for operation in Zone 22
Reinforced tropic-proof protection
Hoist available in a version that complies with CSA standards

Made-to-measure configurations

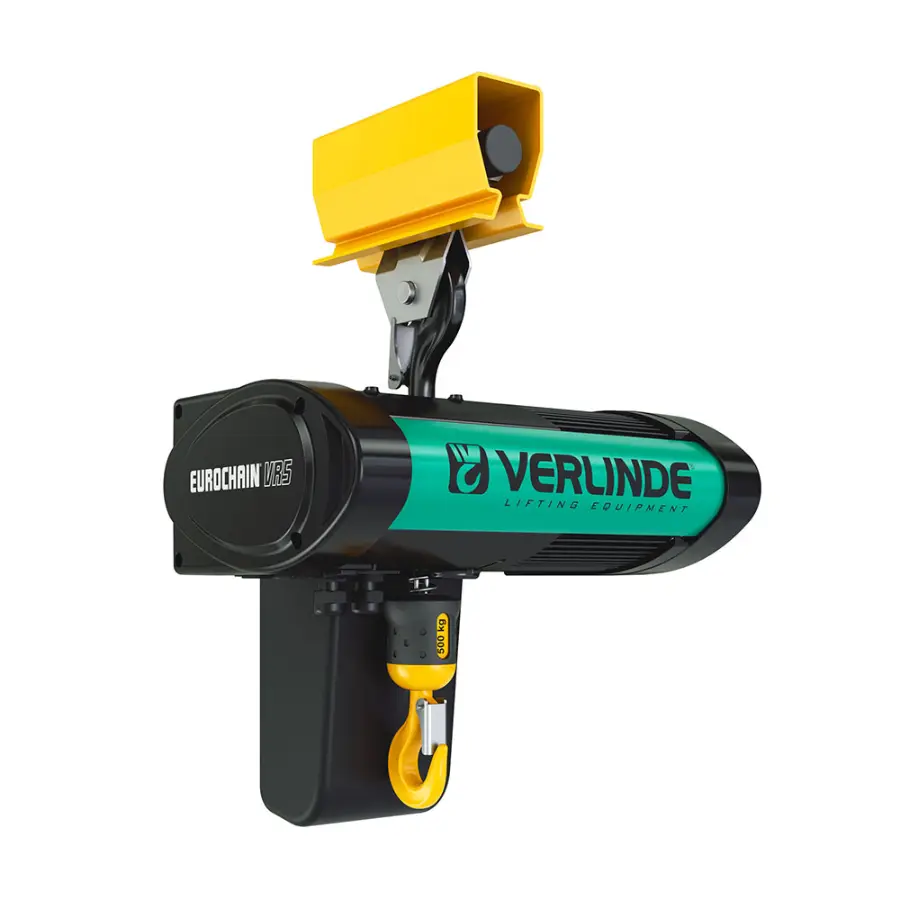

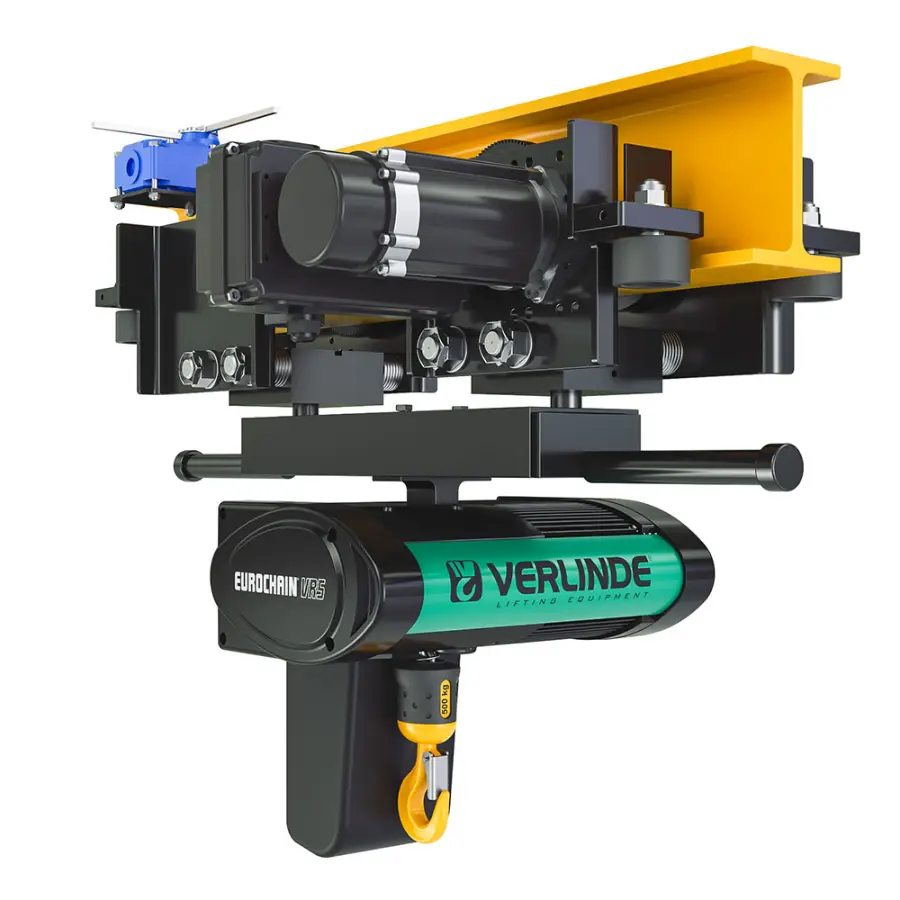

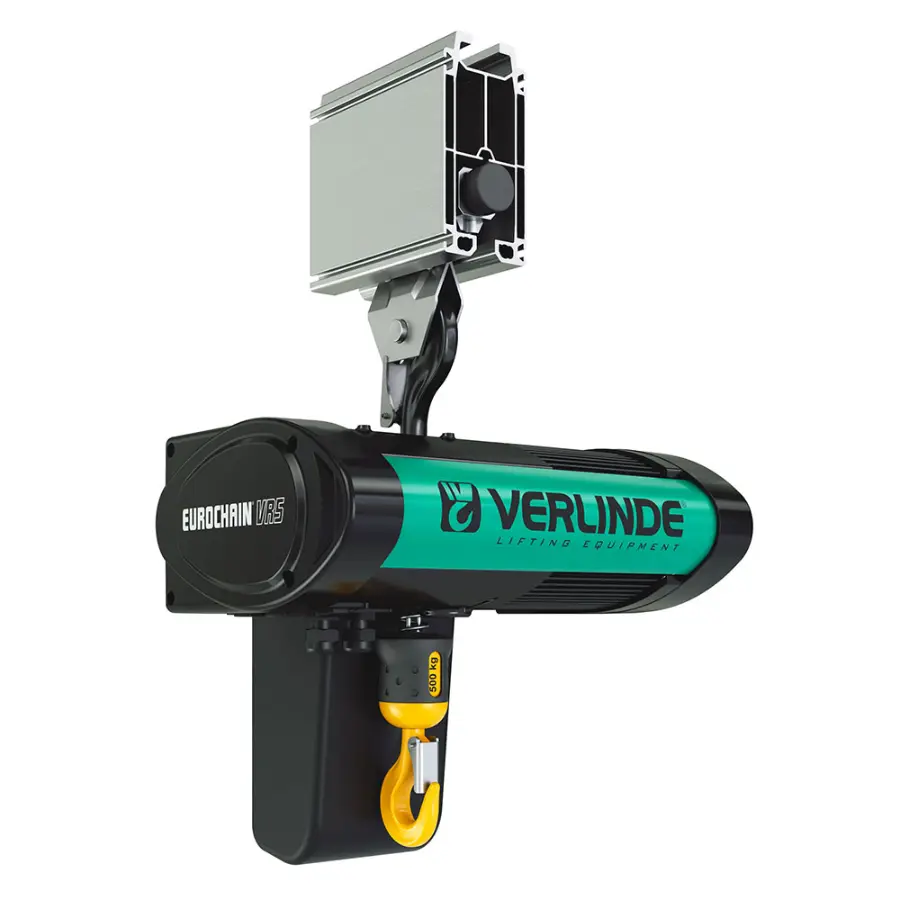

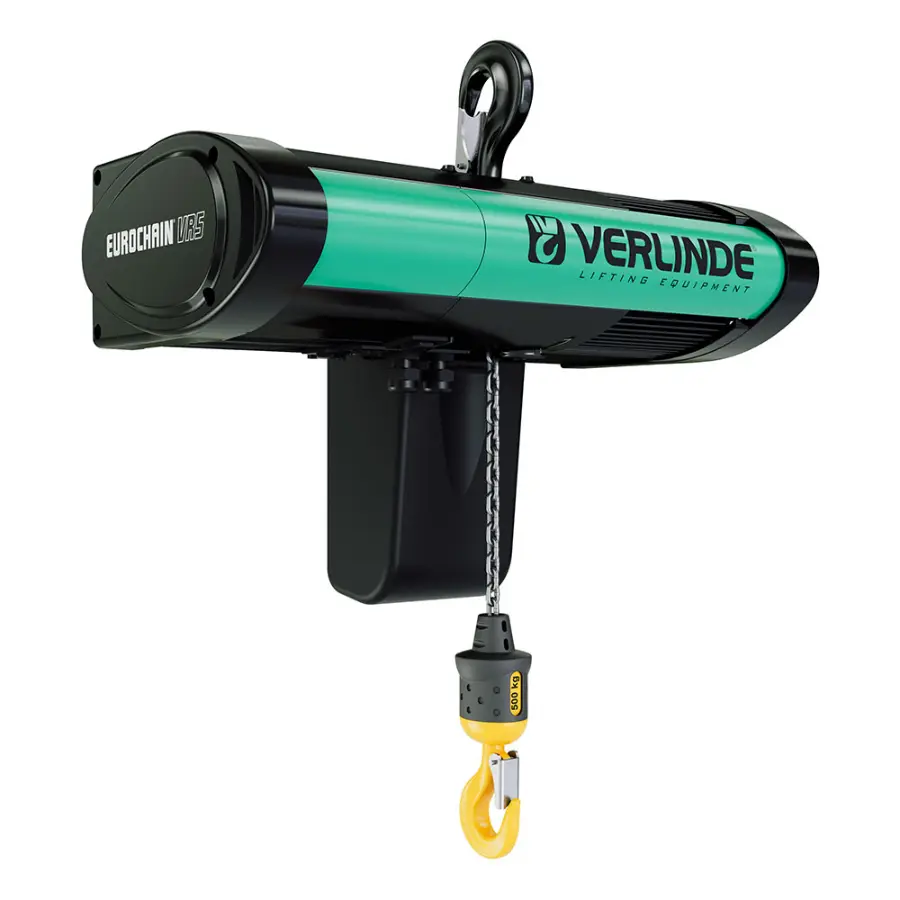

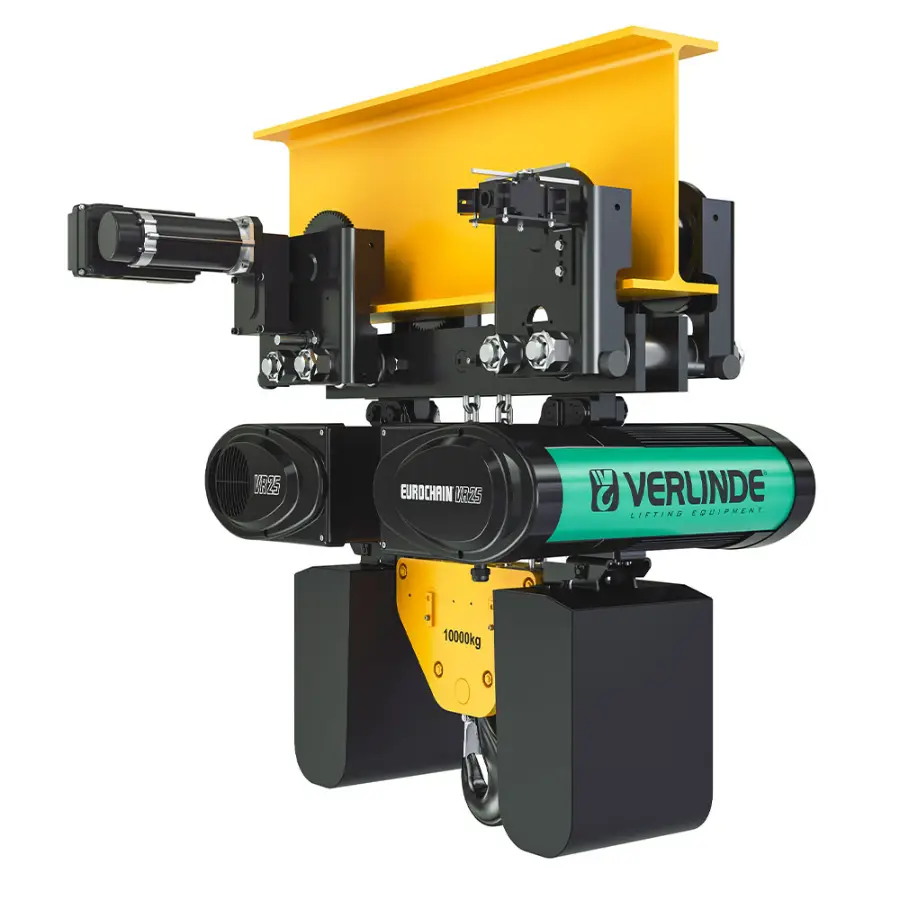

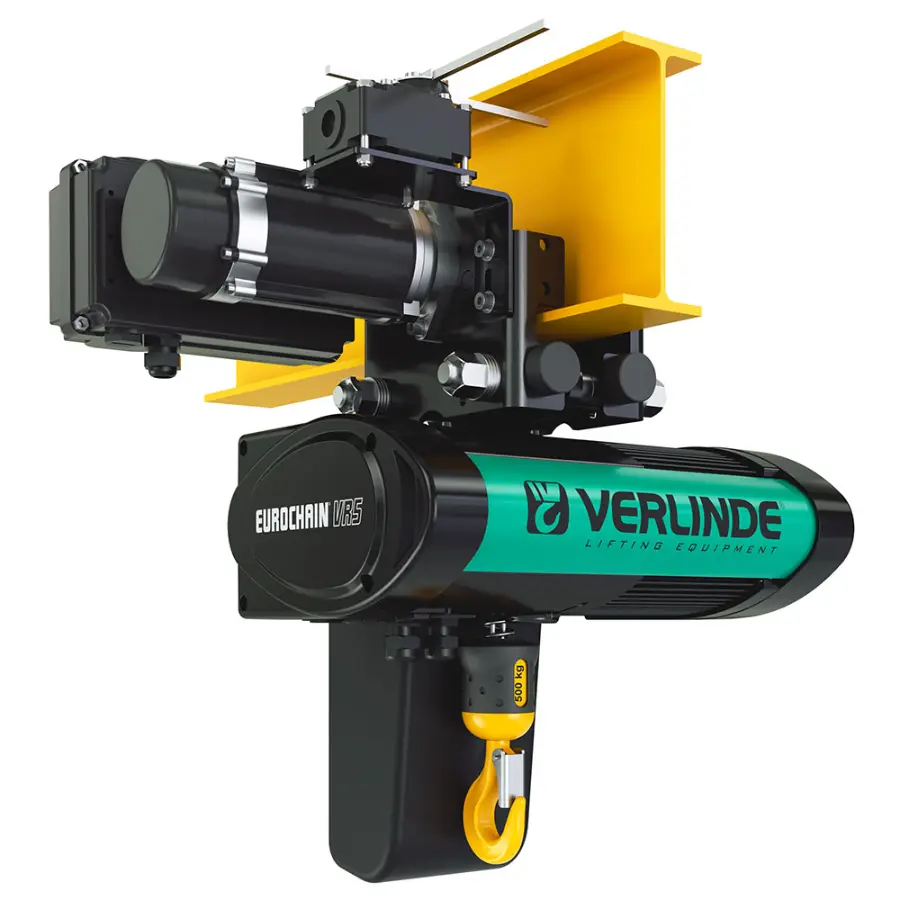

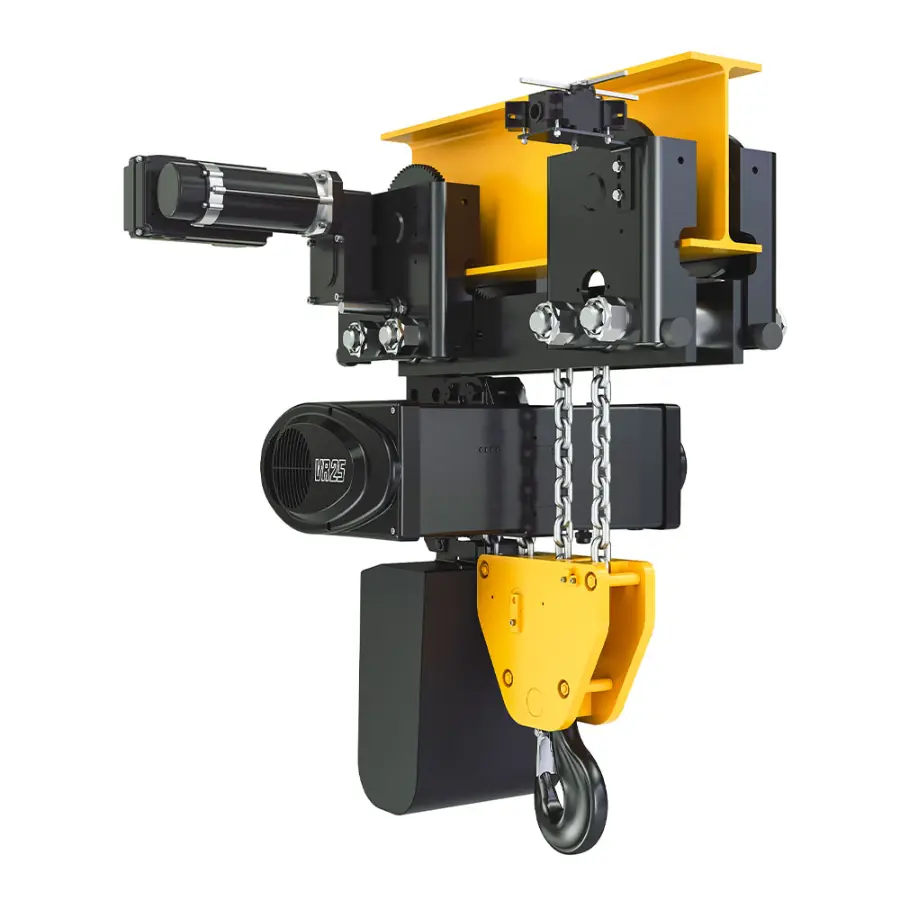

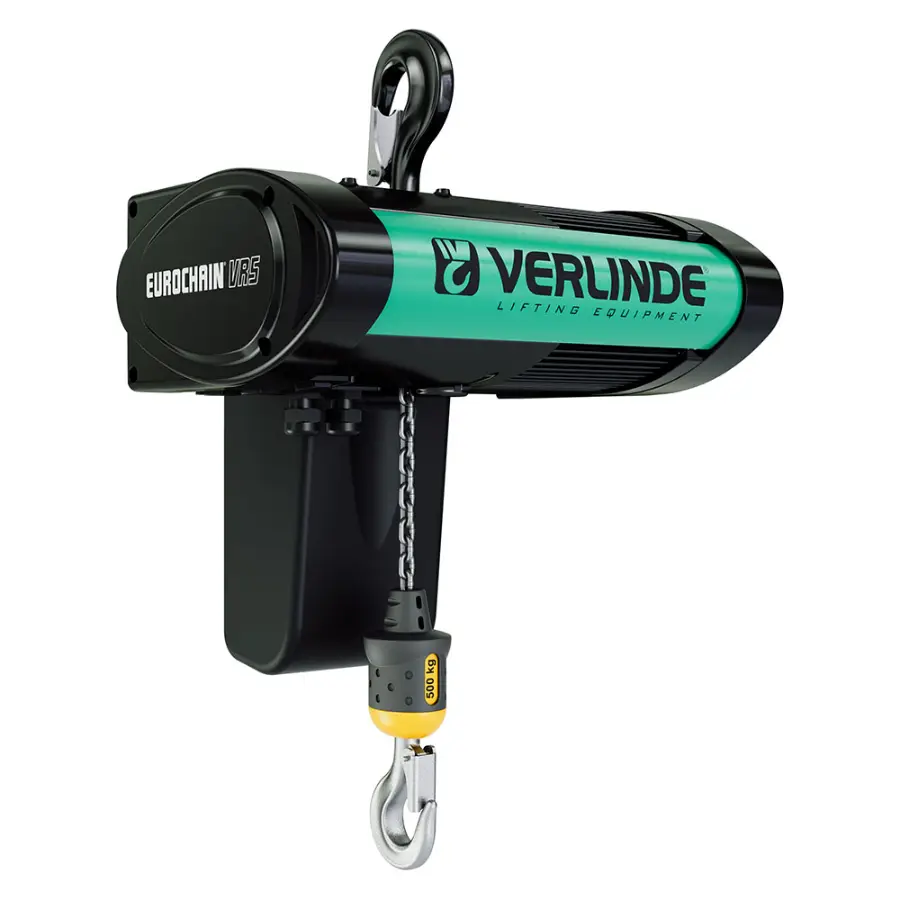

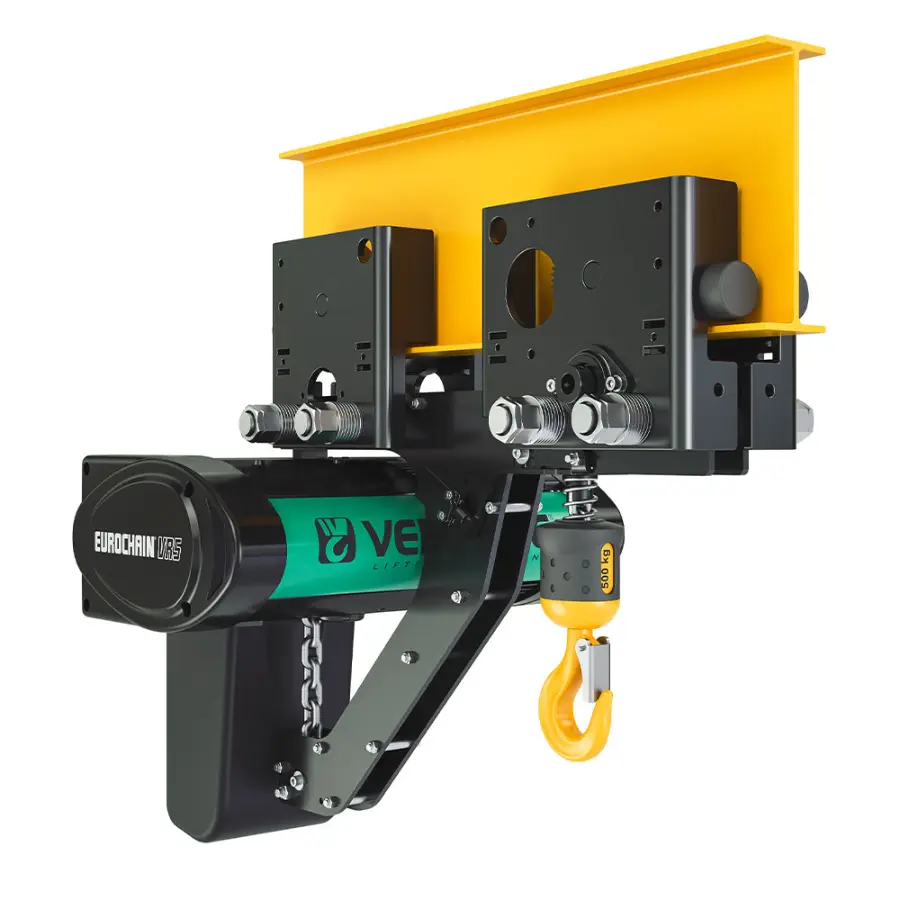

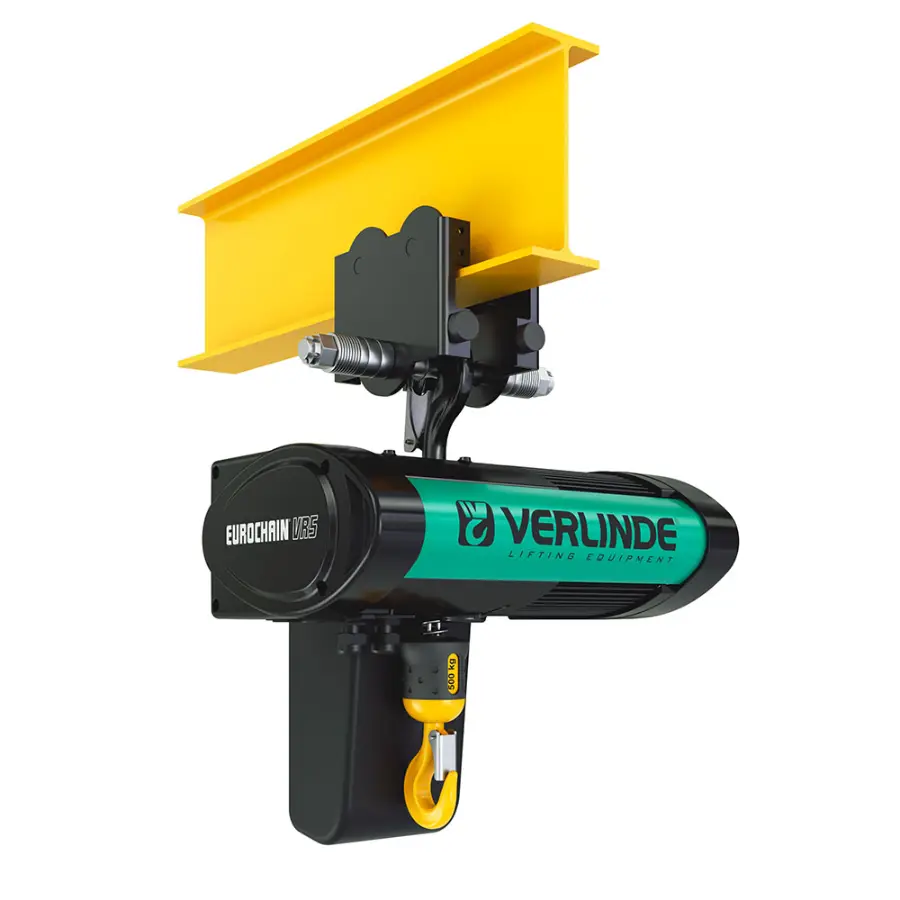

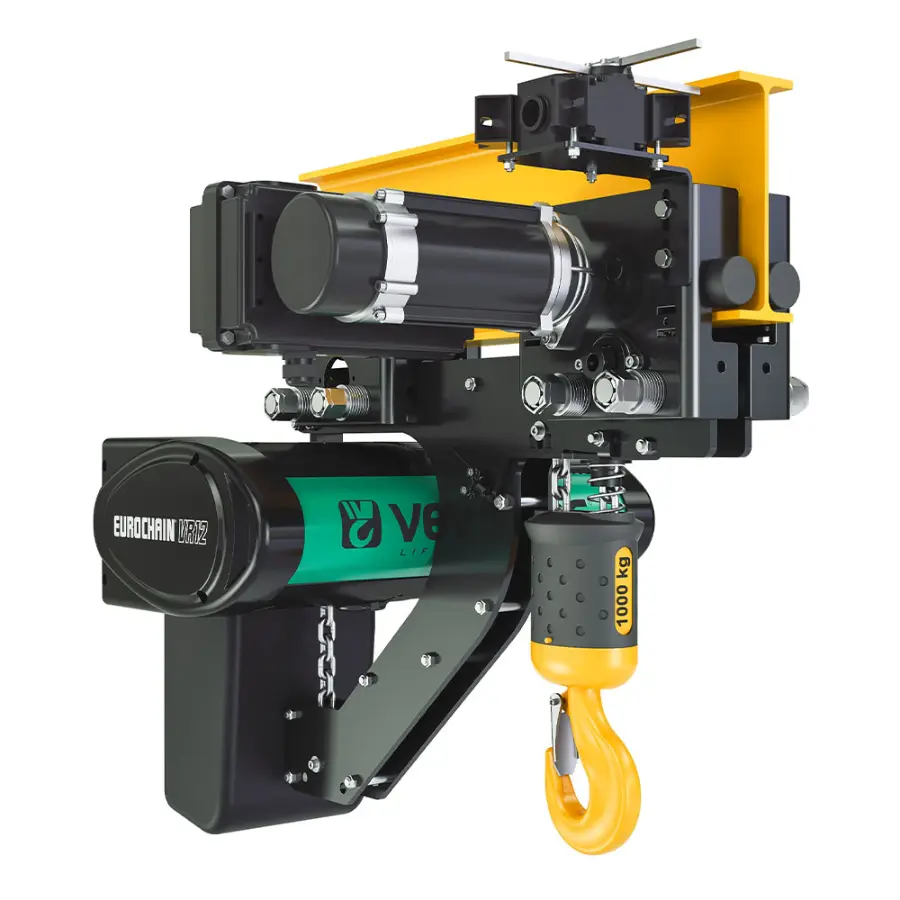

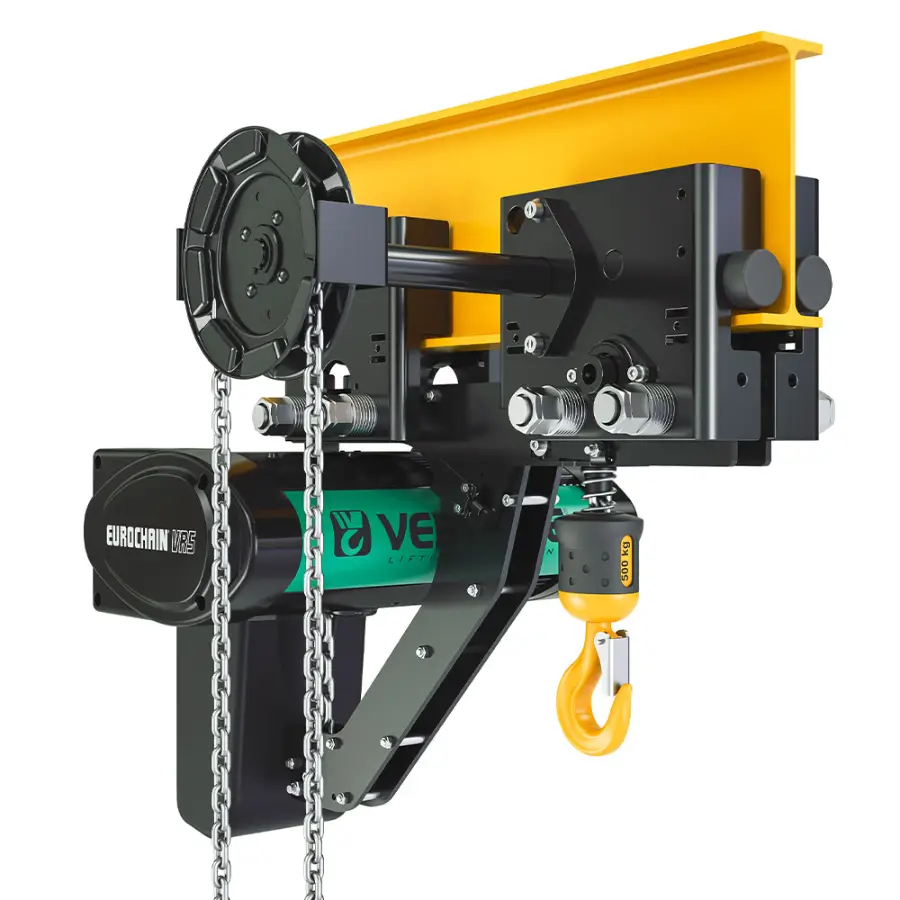

Available as fixed suspended by hook, hooked to hand operated or geared trolley on I beam, hooked to motorized or hand operated trolley in Eurosystem ALU profile and coupled to motorized trolley on I beam.
