Gantries VGI

Product presentation

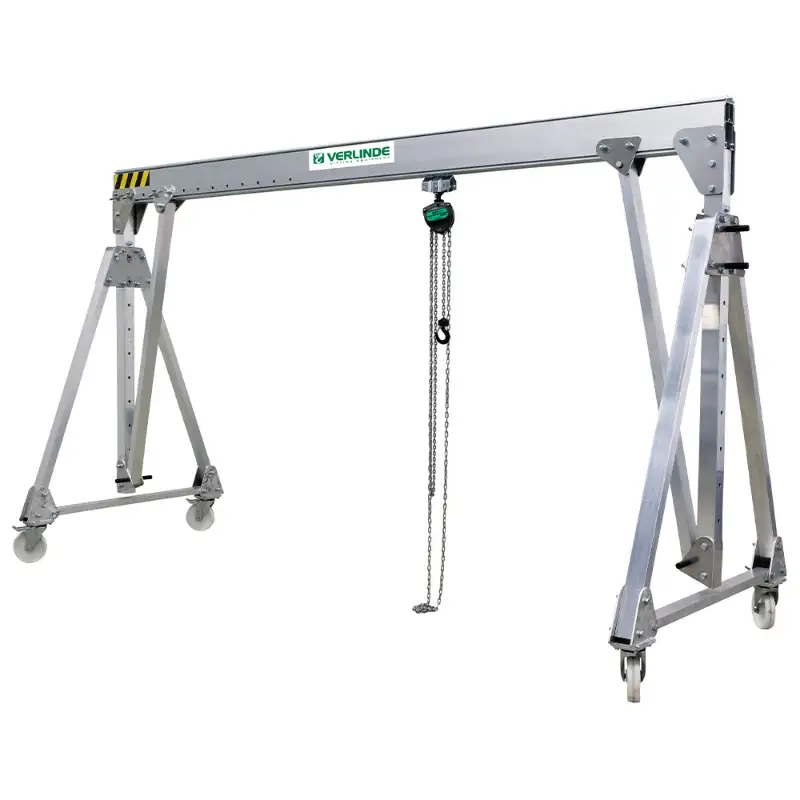

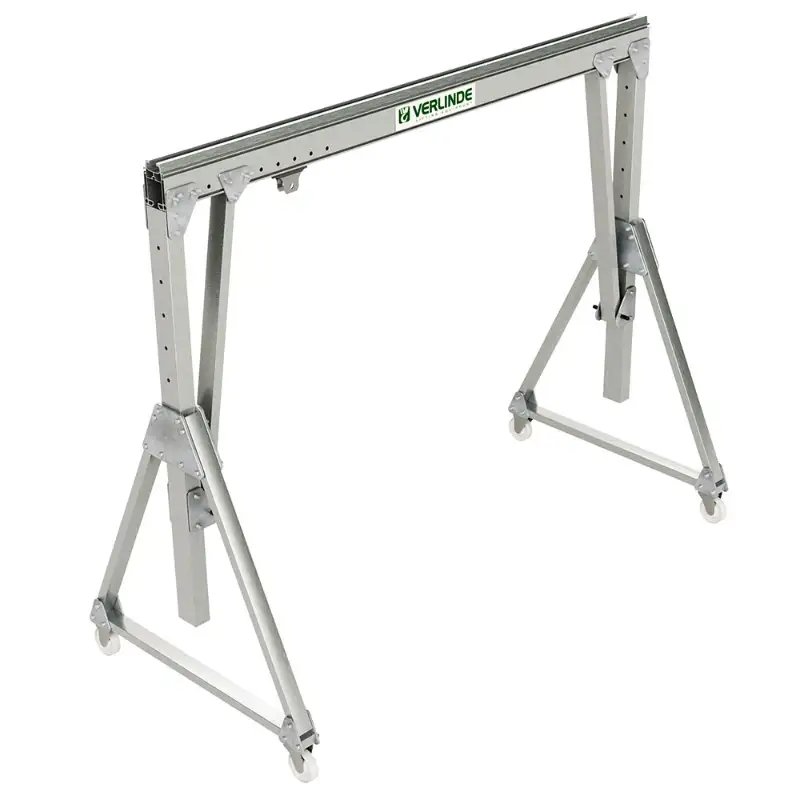

This line of standard gantries is designed to receive all types of hoisting device. The VERLINDE gantry can be equipped with manual or electrically-powered chain tackle.

Technical characteristics

• The extreme mobility and stability on all surfaces provided by means of four caster wheels fitted with ball bearings on the shafts and king pins. These
• wheels formed from acetyl resin have excellent shock behaviour and ability to withstand attack by chemicals
• The raceway is a weld-fabricated IPE profile designed to accommodate a lifting and traversing movement device, with two traversing breast-pieces. The unit is finished in RAL 1028 polyurethane lacquer. Fully dismountable, the VERLINDE independent gantries adapt to your need to make best use of workshop space
• The gantry is delivered disassembled, together with its galvanized bolt work and takes little time to assemble and commission
• A 3-piece dismounted weld fabricated package
• The gantries can be moved loaded on a smooth, clean floor

Options available

• Wheels locking device.
